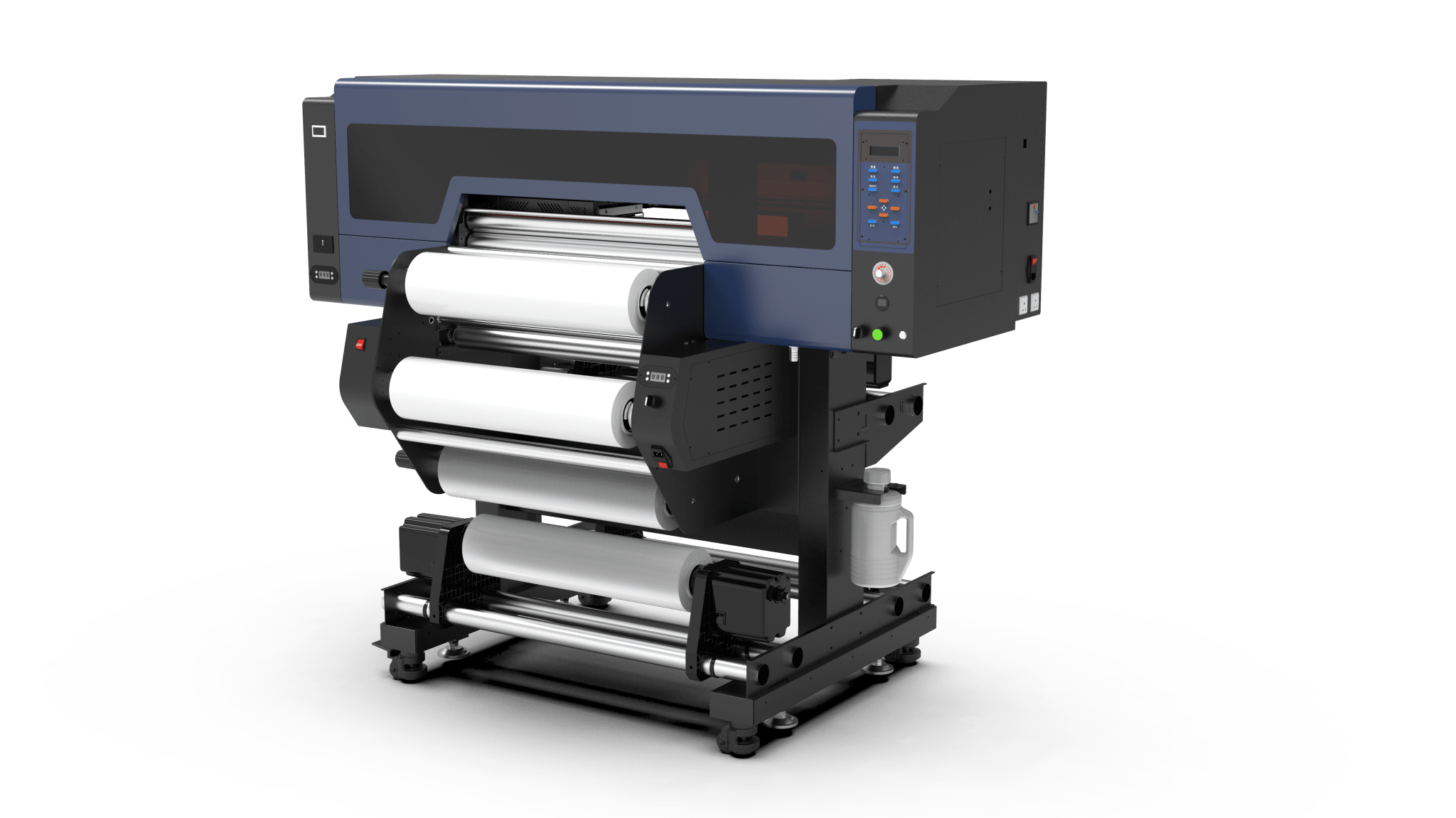

SF60-4 Foil Stamping UV DTF Printer

SF60-4 Foil Stamping UV DTF Printer

Regular price $22,052.00 USD
Regular price Sale price $22,052.00 USD
Sale Sold out

Introducing the SF60-4: Advanced Foil Stamping UV DTF Printer

The SF60-4 is a cutting-edge UV DTF printer designed to deliver exceptional print quality with outstanding efficiency. Featuring four imported Epson I3200-U1 printheads, this machine ensures smooth ink application and sharp, detailed prints. Ideal for professional printing businesses, the SF60-4 provides flexibility, precision, and reliability for even the most demanding applications.


Key Features:

  • Advanced Printheads: Equipped with four Epson I3200-U1 printheads for reliable, high-precision ink spraying and stunning results.
  • Noise-Reducing Linear Rail: Ensures stable, quiet operation, extending the machine's lifespan and providing a comfortable work environment.
  • Versatile Printing Solutions: Supports specialized processes such as white ink, varnish, gold and silver foil stamping, and laser effects, making it perfect for creative and intricate tasks.
  • White Ink Circulation System: Prevents clogs and ensures consistent, high-quality prints through continuous white ink circulation.
  • Temperature-Controlled Print Quality: A heated bottom plate maintains optimal performance even in low-temperature environments.
  • LED UV Curing System: The independent, water-cooled UV LED curing unit ensures rapid curing, enhanced productivity, and extended lifespan.
  • Fully Automatic Printing & Lamination: Integrated automatic printing and laminating capabilities enhance efficiency and reduce manual handling.

Specifications:

  • Model: SF60-4
  • Printhead Type: Epson I3200-U1
  • Print Speed:
    • 6 Pass: 6.5 m²/h
    • 8 Pass: 4.7 m²/h
  • Ink Type: UV DTF Ink
  • Colors: G+W+CMYK+V/V1
  • Heating Mode: Rubber roller heating
  • System Configuration:
    • CPU: Intel Core™ i7-9700K
    • RAM: Kingston 8GB or higher
    • OS: Windows 7 or later
    • Network: Gigabit Ethernet
  • Print Media: AB film, PET film
  • Media Transport: Automatic roll feeding and rewinding
  • Operating Environment:
    • Temperature: 18°C–34°C
    • Humidity: 36%–60%
  • Machine Dimensions: 1745 x 1100 x 1500 mm
  • Print Width: 600 mm
  • RIP Software: Maintop, Riin, FleiPRINT, etc.
  • Image Formats: JPG, TIF, PDF, etc.
  • Power Supply: 110V/220V, 50–60Hz
  • Weight: 262 kg

Why Choose the SF60-4?

The SF60-4 Foil Stamping UV DTF Printer combines quality, speed, and versatility, making it the ultimate solution for businesses seeking to deliver premium prints efficiently and reliably. With its state-of-the-art technology and comprehensive features, the SF60-4 is perfect for producing high-end prints across various applications.


For inquiries or to place an order:

Shipping costs are calculated manually and billed separately.
